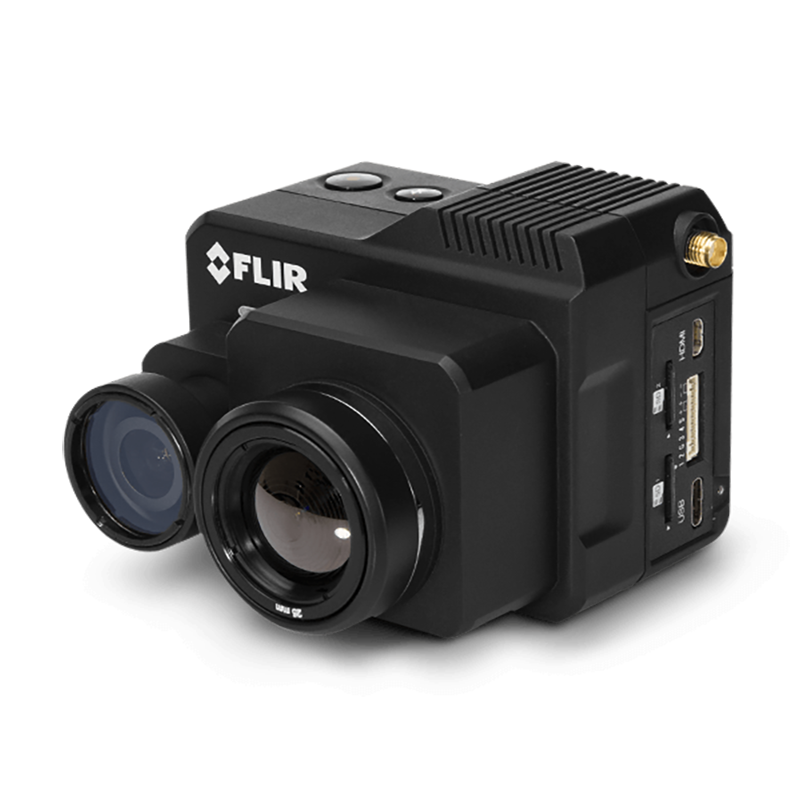

FLIR Duo® Pro R

MODEL: DUO PRO R, 336X256, 17° FOV, 30HZ

The ultimate drone thermal imaging solution is here. The new FLIR Duo® Pro R combines a high resolution, radiometric thermal imager, 4K color camera, and a full suite of on-board sensors to bring you the most powerful dual-sensor imaging solution in the world for small commercial drones. Capture actionable data around the clock with Duo Pro R.

Categories: ,

The Drone Imager Everyone’s Been Asking For

  • TOP-OF-THE-LINE DRONE IMAGING

    View thermal and hi-def color imagers in flight, or see them both in picture-in-picture mode, all while recording video and stills on two microSD cards. *Gremsy gimbal not included

  • BUILT-IN SENSOR SUITE FOR IMAGE GEO-TAGGING

    Fully integrated GPS receiver, IMU, magnetometer, and barometer provide all the data needed to create accurate orthomosaics without integrating to external flight controllers.

  • EASY TO CONFIGURE

    Easy configuration with the FLIR UAS app lets pilots set color palettes, image optimization features, configure PWM inputs without lugging a computer to the field.

    SPECIFICATIONS
    OVERVIEW
    Dimensions
    85 × 81.3 × 68.5 mm
    Spectral Band
    7.5 – 13.5 µm
    Thermal Frame Rate
    30 Hz
    Thermal Imager
    Uncooled VOx Microbolometer
    Weight
    325 g
    Thermal Lens Options
    19 mm: 17° x 13°
    Thermal Sensitivty
    <50 mK
    Thermal Sensor Resolution Options
    336 x 256
    CONNECTIONS & COMMUNICATIONS
    Digital Video Output
    1080p60, 1080p30, 720p60
    MAVLink Interface
    Yes
    Remote Control
    Yes – PWM (3 channels), MAVLink
    10 Pin Accessory Port
    Power in, Analog Video Out, PWM, MAVLink, Frame Sync Out
    Micro – HDMI
    Digital Video Out
    Mounting Features
    1/4″-20 TPI Tripod Mounts (qty 2, bottom surface)
    USB 3.0
    Power in, USB Mass Storage
    ENVIRONMENTAL & APPROVALS
    Operating Temperature Range
    -20°C to +50°C
    Operational Altitude
    +38,000 feet
    Storage Temperature Range
    -20°C to +60°C
    IMAGING & OPTICAL
    Global Positioning System [GPS]
    Yes (GPS, GLONASS)
    Multiple Color Palettes
    Yes – Adjustable in App and via PWM
    Visible Camera FOV
    56° x 45°
    Imaging Modes
    IR-only, Vis-only, Picture-in-Picture (IR in Vis)
    MSX Image Enhancement
    Yes
    Other Sensors
    Accelerometer, Gyroscope, Magnetometer, Barometer
    Visible Sensor Resolution
    4000 x 3000
    PERFORMANCE
    Measurement Accuracy
    +/- 5 C or 5% of readings in the -25°C to +135°C range +/- 20 C or 20% of readings in the -40°C to +550°C range
    POWER
    Input Voltage
    5.5 – 26.0 VDC (10-pin JST Port) 5.0 VDC (USB-C Port)
    Power Dissipation [avg]
    10 W
